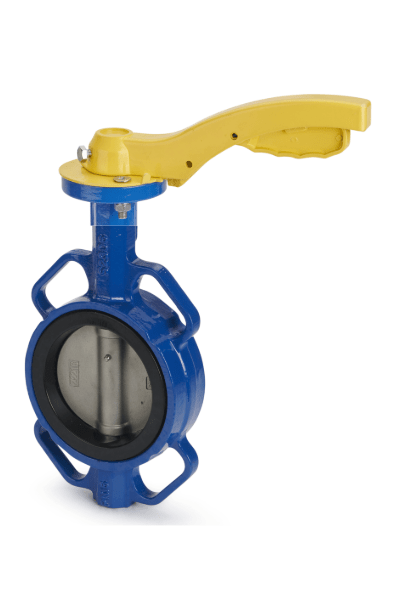

Butterfly Valve Resilient Seated Ductile Iron Body Stainless Steel Disc Wafer EPDM Seat (WRAS) BUNA NBR Seat (Gas) (CBF-W/L)
Butterfly Valve Resilient Seated Ductile Iron Body Stainless Steel Disc Wafer EPDM Seat (WRAS) BUNA NBR Seat (Gas) (CBF-W/L)
Regular price
£40.90 GBP
Regular price
Sale price
£40.90 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Share
Couldn't load pickup availability
| Body Material | Ductile Iron |
| Disc Material | ASTM A351-CF8M |
| Seat Material | EPDM (WRAS) / NBR BUNA (Gas) |
| Stem Material | SS 416 |
| Stem Bushing | FRP |
| O-Ring | NBR |
| Connection | Between Flanges |
| Features | Direct Mount ISO 5211, WRAS (EPDM), BUNA (GAS) |
| Working Temperature | -20°C to +120°C |
| Maximum Working Pressure | 16 Bar | 150 PSI |
| Pressure & Temperature Ratings are dependent on application. | |
| Please check datasheet(s) or contact us for assistance |
