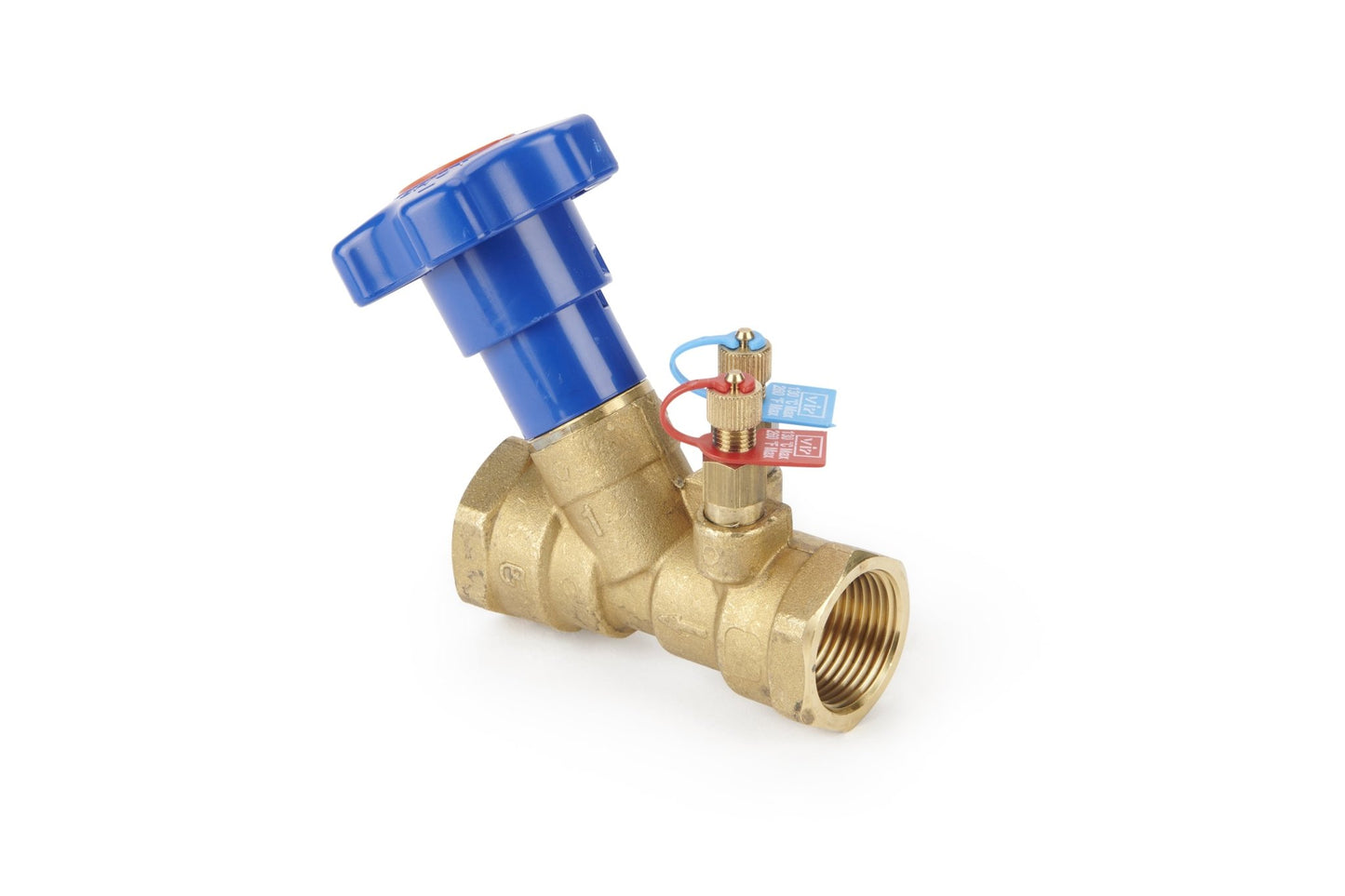

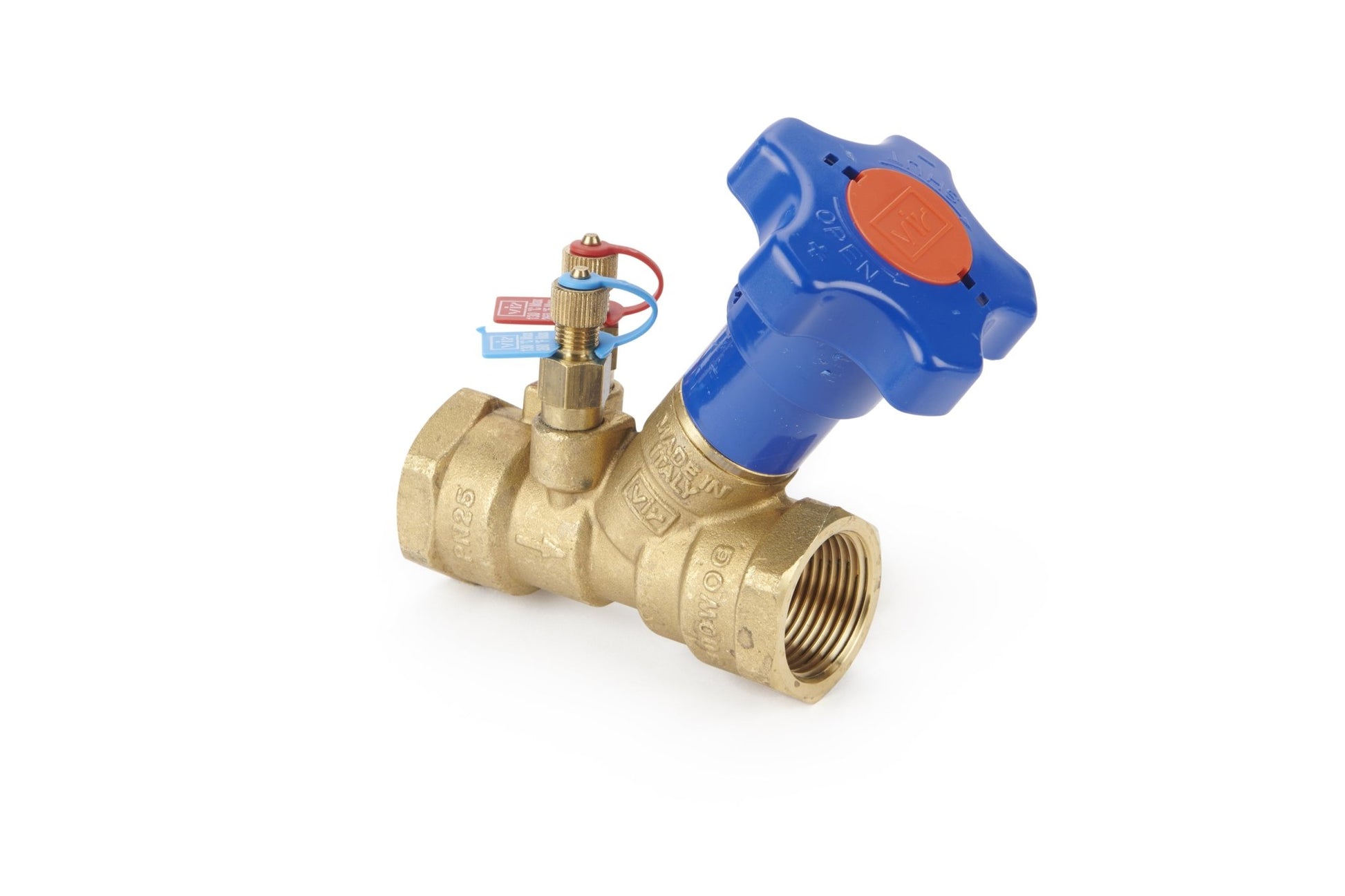

Double Regulating Valve Brass Fixed Orifice Screwed BSP Connections (F95V)

Body Material :    DZR Brass
Bonnet Material: DZR Brass
Stem Material :    DZR Brass
Disc Material :      DZR Brass
Connection :         Screwed BSP

Features

Suitable for: water, -10°C to +130°C below 0°C only for water with added antifreeze fluids over 100°C only for water with added anti-boiling fluids (Ethylene
glycol or propylene glycol mixtures up to 50% maybe used). Design according to BS7350.
Tolerance on nominal Kvs ±3% (test according to BS7350)
WRAS Approved
Working Pressure: PN25 max up to 110°C / PN20 max
Working Temperature: -10°C to 130°C. <0°C only for water with added antifreeze fluids & >100°C only for water with added anti-boiling fluids

Please check datasheet(s) or contact us for assistance
