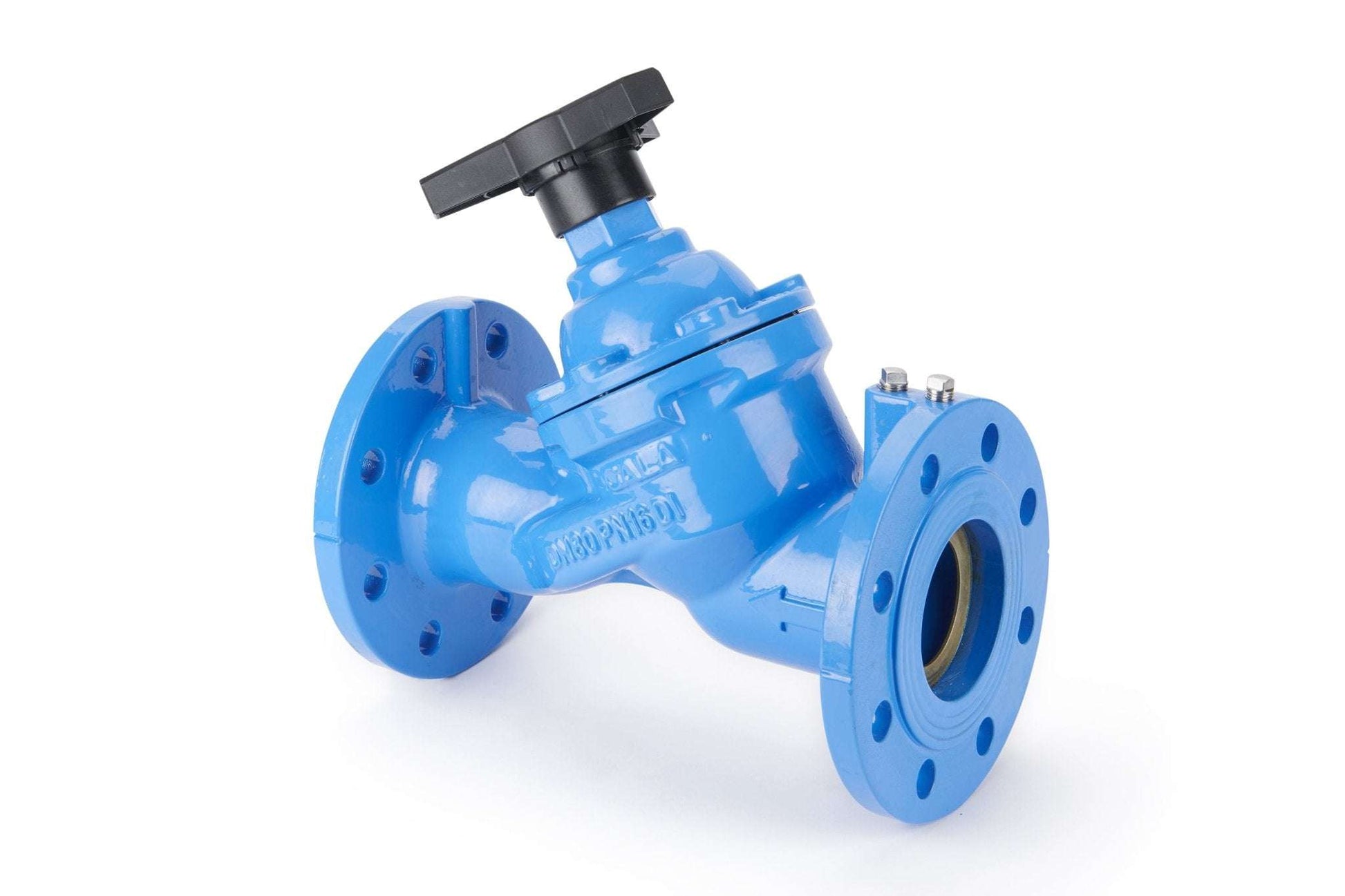

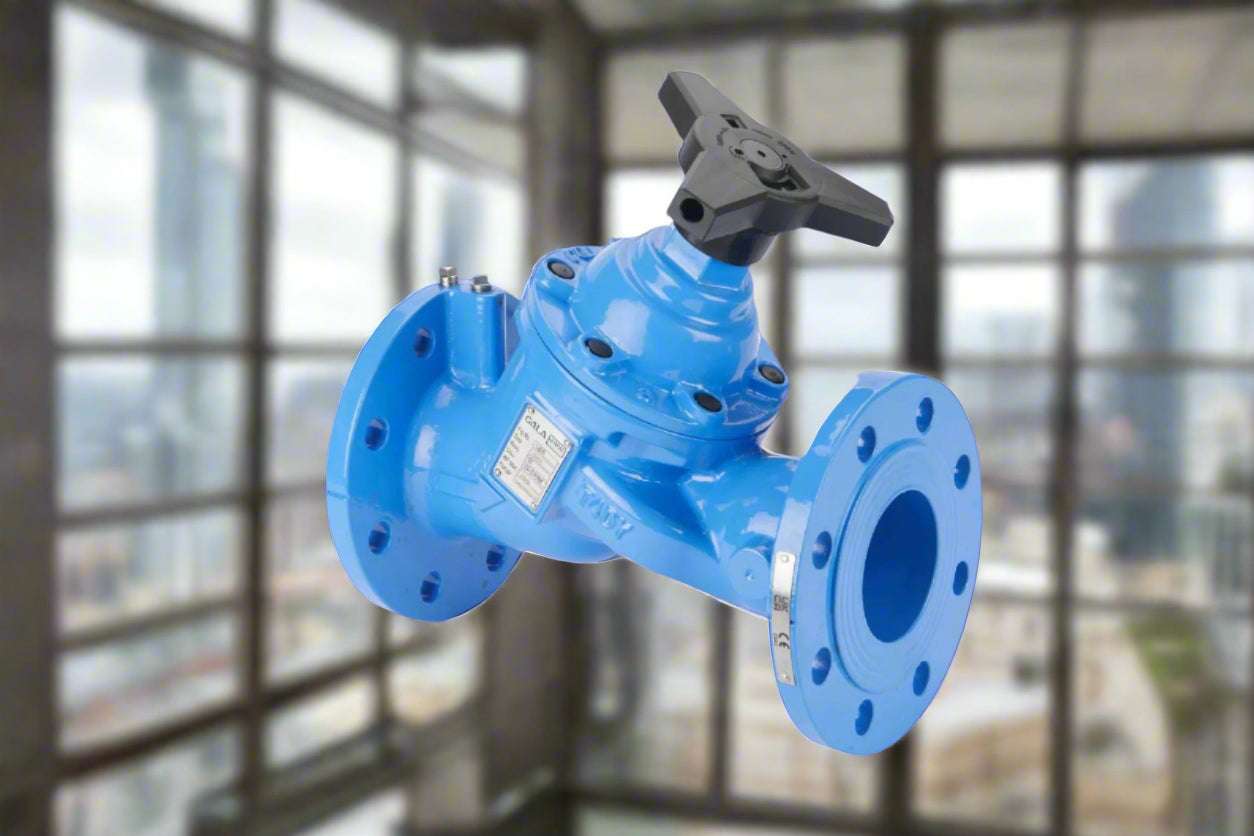

Metering Double Regulating Valve WRAS PN16 (1209-DFM)
Metering Double Regulating Valve WRAS PN16 (1209-DFM)
Regular price
£374.40 GBP
Regular price
Sale price
£374.40 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Share
Couldn't load pickup availability
| Body Material | Ductile Iron EN-JL 1050 |
| Bonnet Material | Ductile Iron EN-JL 1051 |
| Stem Material | Stainless Steel 410 |
| Disc Material | EPDM Coated DI |
| Connection | Flanged PN16 |
| Features | Single unit Y-pattern globe valves incorporating an integral orifice plate to form a fixed orifice flow measurement unit with regulation and isolation capacity. |
| Valves conform to requirements of BS 7350 | |
| Primarily used in injection or other circuits requiring a double regulating valve for systems balancing. | |
| Accuracy of flow measurement is ±5% at all open positions of the valve in accordance with BS 7350. | |
| Please check datasheet(s) or contact us for assistance | |
